Spring Cloud로 개발하는 MSA/API Gateway Service

Netflix Zuul - 프로젝트 생성

webmaster 2022. 5. 3. 14:43
728x90

https://spring.io/blog/2018/12/12/spring-cloud-greenwich-rc1-available-now#spring-cloud-netflix-projects-entering-maintenance-mode



Spring Cloud Greenwich.RC1 available now

<p>On behalf of the community, I am pleased to announce that the Release Candidate 1 (RC1) of the <a href="https://cloud.spring.io">Spring Cloud Greenwich</a> Release Train is available today. The release can be found in <a href="https://repo.spring.io/mil

spring.io

Netflix Zuul, Ribbon과 같은 경우 SpringBoot 2.4 버전 이전 버전에만 사용 가능하다(이후 버전에는 Maintence 되어있다.)

First-service 만들기

Pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.8.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>first-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>first-service</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>11</java.version>
        <spring-cloud.version>2020.0.0</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.3.8.RELEASE</version>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>
  • 2.3.8 version을 SpringBoot service(Maintence 되기 직전을 버전을 사용)

appliction.yml

server:
  port: 8081

spring:
  application:
    name: my-first-service

eureka:
  client:
    fetch-registry: false
    register-with-eureka: false
  • port : 8081
  • application 이름 : my-first-service
  • 유레카는 사용하지 않는다.

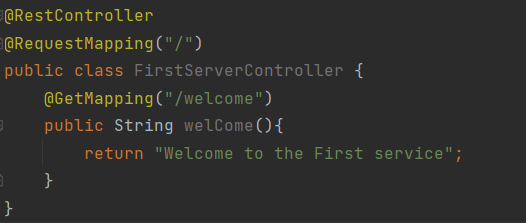

FirstServerController

Test 컨트롤러

  • Test로 사용할 Controller를 생성한다.

Second-service 만들기

Pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.8.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>second-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>second-service</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>11</java.version>
        <spring-cloud.version>Hoxton.SR9</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.3.8.RELEASE</version>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>
  • 2.3.8 version을 SpringBoot service(Maintence 되기 직전을 버젼을 사용)

appliction.yml

server:
  port: 8082

spring:
  application:
    name: my-second-service

eureka:
  client:
    fetch-registry: false
    register-with-eureka: false
  • Port : 8082
  • application 이름 : my-second-service
  • 유레카 사용 X

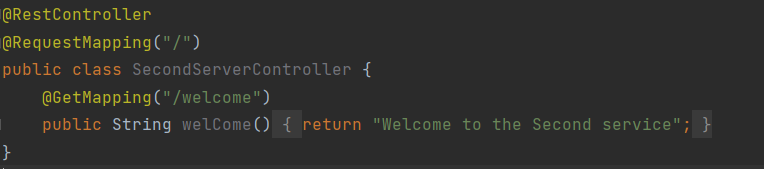

SencondServerController

Test Controller

  • Test용 SecondController

Zuul-Server 만들기

Pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.3.8.RELEASE</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.example</groupId>
    <artifactId>zuul-service</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>zuul-service</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>11</java.version>
        <spring-cloud.version>Hoxton.SR9</spring-cloud.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-netflix-zuul</artifactId>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring-cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupId>org.projectlombok</groupId>
                            <artifactId>lombok</artifactId>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>
  • Spring Cloud Zuul을 사용한다.
  • SpringBoot 2.3.8 이전 버전은 지원하지 않는다.

application.yml

server:
  port: 8000

spring:
  application:
    name: my-zuul-service

zuul:
  routes: #라우팅 설정
    first-service:
      path: /first-service/** #사용자 요청 이럴경우
      url: http://localhost:8081 #해당 URL로 이동한다.
    second-service:
      path: /second-service/**
      url: http://localhost:8082
  • port : 8000
  • application 이름 : my-zuul-service
  • 라우팅 설정
    • first-service : /first-service 밑에 모든 요청
      • http://localhost:8081로 이동한다.
    • second-service : /second-service 밑에 모든 요청
      • http://localhost:8082로 이동한다.

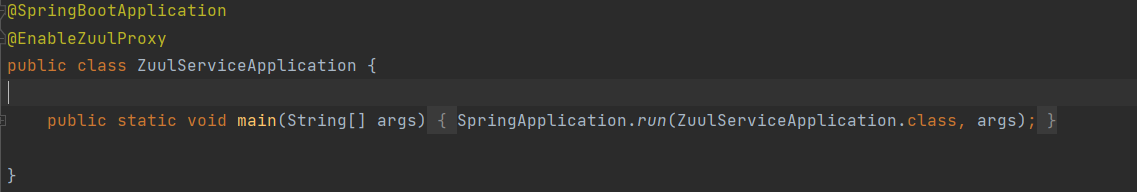

EnableZuulProxy

  • 라우팅 설정을 하게 되면 해당 Microservice 이름으로 해당 Service를 접근이 가능하다
  • @EnableZuulProxy : ZuulProxy서버를 사용함을 명시
  • 통일되어 있는 8000번을 ZullService에서 어떤 MicroService로 갈지 통제한다.



  •
